As photovoltaic (PV) technology continues to evolve, both single-glass and double-glass solar modules are widely used across residential, commercial, and utility-scale installations. While these modules contribute significantly to clean energy production, their end-of-life management presents different recycling challenges. Understanding the structural differences between these two module types is essential for designing effective recycling strategies. At YUSHUNXIN, we manufacture advanced solar panel recycling equipment that helps recycling companies efficiently process both single-glass and double-glass photovoltaic modules while maximizing material recovery.

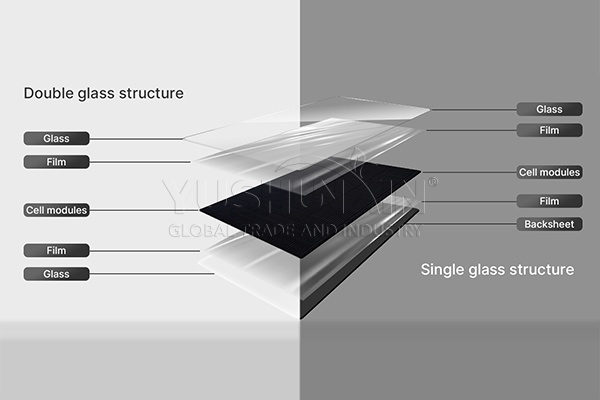

Structural Differences Between Module Types
Single-glass solar modules typically consist of a front glass layer, encapsulation materials such as EVA, photovoltaic cells, and a polymer backsheet. An aluminum frame surrounds the panel, providing structural support. These modules have been widely used for many years and represent a large portion of early solar installations. For facilities handling these legacy panels, specialized disposal approaches for single-glass panels help ensure efficient material separation.
Double-glass modules, on the other hand, replace the polymer backsheet with an additional layer of tempered glass. This design improves durability and moisture resistance, extending panel lifespan. However, the additional glass layer also increases the overall weight and structural rigidity of the module, which affects how the panels must be processed during recycling.
Recycling Challenges for Single-Glass Modules
Single-glass modules are generally easier to dismantle because the backsheet material can be separated more readily once the aluminum frame and junction box are removed. However, separating encapsulated layers such as EVA from the glass and silicon cells still requires specialized equipment.
Mechanical crushing and separation technologies are commonly used to break down these panels into recyclable material streams, including glass fragments, aluminum, copper, and silicon-containing fractions. The recovery purity of these materials directly impacts their resale value in secondary markets.
Additional Complexity in Double-Glass Module Recycling
Double-glass modules introduce additional challenges due to the presence of two bonded glass layers surrounding the solar cells. The stronger structure improves panel durability during operation but makes dismantling and material separation more demanding. A dedicated recycling solution for double-glass modules addresses these structural challenges through specialized processing sequences.
Processing these modules requires equipment capable of handling heavier panels and applying controlled crushing forces to separate glass layers without excessive material loss. Efficient separation technologies are essential to ensure that glass and metal components can be recovered in usable forms.
Technology Solutions for Efficient Recycling
To address these challenges, recycling systems must combine robust mechanical processing with effective material separation technologies. YUSHUNXIN solar panel recycling equipment integrates frame removal, crushing, screening, and separation processes to handle both module types efficiently. Integrated system design ensures smooth material flow from intake to final sorting.
Our equipment is designed to manage different panel structures while maintaining stable throughput and reliable material recovery rates. Integrated dust control systems also help maintain clean processing conditions and improve operational safety.
Supporting the Future of Solar Panel Recycling
As the number of retired photovoltaic panels grows worldwide, recycling systems must be capable of processing a wide variety of module designs. Both single-glass and double-glass panels require specialized handling to ensure valuable materials are recovered efficiently. This capability is becoming increasingly important as global installation volumes continue to expand across all market segments.
As a manufacturer of solar panel recycling equipment, YUSHUNXIN focuses on delivering durable and practical solutions that help recycling companies process diverse PV waste streams while supporting the long-term sustainability of the solar energy industry.
For insights into how policy developments are shaping recycling requirements for different module types, you can read about new regulations affecting PV recycling investments.
